KTM is celebrating “30 Years of Duke” this year, and we’ve already reviewed two updated models, the 390 Duke and 990 Duke. We’ve saved the best – and biggest – for last, the 1390 Super Duke R Evo. Known for years as “The Beast,” the Super Duke gets a displacement bump from 1,301cc to 1,350cc (hence the evolutionary name change from 1290 to 1390) and other upgrades for 2024. KTM says it’s 60% new.
To achieve the larger displacement, KTM bored out the Super Duke’s twin cylinders from 108mm to 110mm but left stroke the same at 71mm. There’s also a new cam shift system that alternates between two different valve lifts above and below 5,700 rpm, allowing for both a deep well of low-end torque and a screaming top end rather than having to compromise between the two. The 1390 Super Duke R Evo’s liquid-cooled, 75-degree LC8 V-Twin now makes a claimed 190 hp (up from 180) at 10,000 rpm and 107 lb-ft of torque (up from 103) at 8,000 rpm, all while meeting Euro 5+ homologation.
Other engine changes include a redesigned airbox with a reduced stack height due to shorter throttle bodies, a larger throttle body inlet diameter (60mm, up from 56), a repositioned top-feed injector for better atomization of the fuel-air mixture, and revised 5th and 6th gears. Improvements in durability have enabled longer service intervals, with valve inspection checks now required every 60,000 km (37,282 miles).
The redesigned air intake and airbox allowed KTM to increase the volume of the fuel tank from 4.2 to 4.6 gallons. Refreshed bodywork includes revised tank spoilers with new winglets that produce downforce at speed, a slimmer subframe cover, and a new, 1.5-lb-lighter LED headlight unit that’s shared with the 990 Duke.
KTM 1390 Super Duke R Evo | GEAR UP
- Helmet: Shoei X-Fifteen
- Suit: Alpinestars Missile V2
- Airbag Vest: Alpinestars Tech-Air 5
- Gloves: Alpinestars SP-8 V3 Air
- Boots: Alpinestars Supertech R Vented
As before, the 1390 Super Duke R Evo has a chromoly-steel trellis main frame that uses the engine as a stressed member, and holding up the tailsection is a cast-aluminum/composite subframe. The updated WP Apex semi-active suspension consists of a 48mm inverted fork and a rear shock with multiple modes (Auto, Comfort, Street, Sport, and Rain). The optional Suspension Pro package adds Track and Pro modes, automatic preload leveling, anti-dive, and Factory Start, which reduces rear preload when coming to a stop to lower the seat height.
Throttle-by-wire and a 6-axis IMU allow for a full suite of electronics, including ride modes (Sport, Street, and Rain), cornering ABS with a Supermoto mode that disables ABS at the rear, lean-sensitive traction control, and cruise control. The optional Tech Pack adds Motor Slip Regulation, Quickshifter+, Suspension Pro, and the Track Pack, which adds Track and Performance ride modes, engine-brake control, wheelie control, telemetry, and a lap timer.
Top-shelf Brembo Stylema monoblock calipers squeeze 320mm discs up front, and they are controlled by a Brembo MCS (multiple-click system) radial master cylinder. A self-venting Brembo clutch master cylinder eliminates the need to bleed the hydraulic clutch system. The Super Duke’s 17-inch wheels are shod with new dual-compound Michelin Power GP tires, which save 1.2 lb of unsprung weight over the previous tires. Claimed wet weight for the Super Duke is 441 lb.

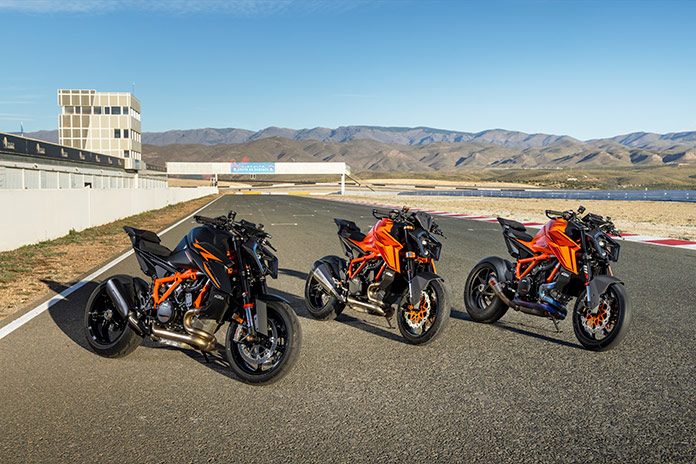

We tested the 1390 Super Duke R Evo at Almeria Circuit, a racetrack in southern Spain. The English translation of the track’s website describes the 2.5-mile, 15-turn circuit as “expectacular” with “more hours of sun of Europe.” Actually, it’s a tricky track with multiple blind corners. And when we were there, it was cold with “more hours of clouds” and, after the first few sessions, “tears falling from the sky” (rain).
As a naked bike, the 1390 Super Duke R Evo has agreeable ergonomics, with an upright handlebar, adequate legroom, and a well-padded seat. Despite its “Beast” moniker, in today’s world of sophisticated electronics and refined tuning, the Super Duke is quite civilized, or at least it can be. Our slow-speed riding was limited to pit lane, but during our tests of previous models, the Super Duke has been well-behaved on city streets.
Related: 2022 KTM 1290 Super Duke R Evo Review
While learning an unfamiliar track on a cold day, the 1390 never felt edgy or twitchy. It was easy to modulate the bike’s throttle, and its handling characteristics were neutral and reassuring. After a couple sighting laps, I started to figure out Almeria’s layout and dial up my speed through the bends. It’s on corner exits that The Beast really comes alive, with heaps of torque at the ready. On the circuit’s two straights, I was able hold the throttle WFO and feel the remarkable amount of thrust the Super Duke is capable of.
Approaching the end of those straights, a firm squeeze on the right lever threw everything into reverse, returning man and machine to more manageable speeds, and a light push on the handlebar quickly initiated a lean into the next corner. As my confidence increased, the Super Duke was right there with me, always ready to give more without ever crossing that invisible line into the abyss, where things go from great to oh-shit in the blink of an eye.
Judging by the speeds at which the former racers and track rats in our group passed me, the 1390 Super Duke R Evo is capable of much more than I was able to wring out of it. Then it started raining.
We huddled and shivered in the unheated paddock as dark clouds dumped sheets of rain on the track, glum faces all around. After a while, when the downpour gave way to drizzle, the KTM guys asked if we wanted to go out on the track to do rolling burnouts and wheelies. Not being a wheelie guy, normally I’d pass, but this was the perfect opportunity to test the new adjustable wheelie control, which can be set to one of five levels, from very low to very high, or it can be turned off.
Ripping a stylin’ wheelie turned out to be easy. The Super Duke makes so much low-end torque that no clutch work is required. I selected the medium wheelie setting, got going in 2nd gear, rolled off the throttle to compress the fork, then wacked the throttle open. The front wheel came right up but wouldn’t go higher than the set lift angle thanks to intervention from the IMU-based traction control system. From zero to hero with the press of a button.
Later, I ventured out onto the track for one last session on damp pavement, but when another ride low-sided into the gravel ahead of me, I tucked my tail and returned to the paddock.
The KTM 1390 Super Duke R Evo is a potent machine, with more power, sophistication, and capability than before. While its full potential can only be unleashed on a track in the right hands in the right conditions, it’s also a helluva streetbike, provided you can resist the temptation to go too far on the wild side.
2024 KTM 1390 Super Duke R Evo Specs
- Base Price: $21,499
- Website: KTM.com
- Warranty: 1 yr., 12,000 miles
- Engine Type: Liquid-cooled, transverse V-Twin, DOHC w/ 4 valves per cyl.
- Displacement: 1,350cc
- Bore x Stroke: 110.0 x 71.0mm
- Horsepower: 190 hp @ 10,000 rpm (factory claim)
- Torque: 107 lb-ft @ 8,000 rpm (factory claim)
- Transmission: 6-speed, hydraulically actuated slip/assist wet clutch
- Final Drive: Chain
- Wheelbase: 58.7 in.
- Rake/Trail: 24.7 degrees/4.0 in.
- Seat Height: 32.8 in.
- Wet Weight: 441 lb
- Fuel Capacity: 4.6 gal.
- Fuel Consumption: 40 mpg (factory claim)
